There is more to this motherboard than the eyes can see. ASUS has packed a lot of tried and true technology as well as some great new innovations into their latest Republic of Gamers (ROG) motherboard. This is the new Rampage IV Black Edition and it may just be the perfect balance between overclocking and gaming.

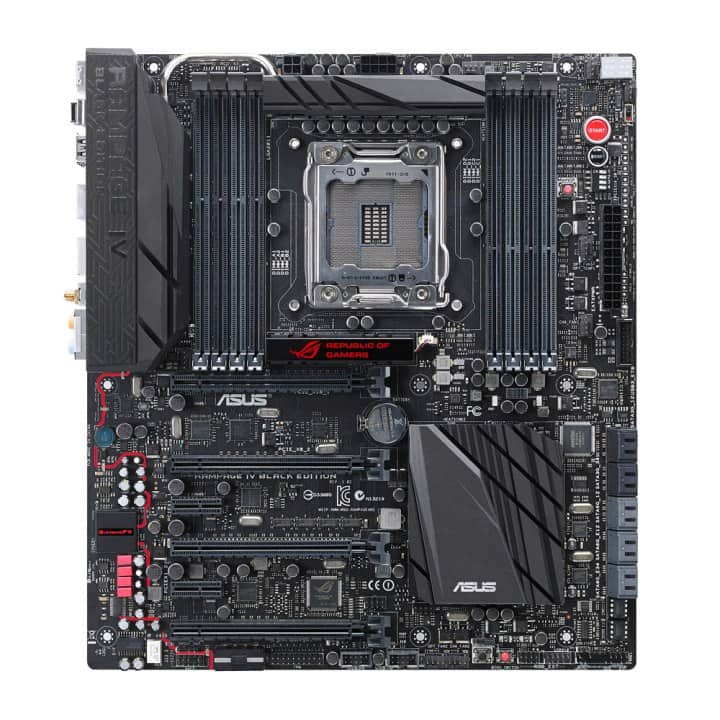

The Rampage IV Black Edition is an E-ATX motherboard designed for the Intel LGA 2011 socket (Ivy Bridge-E processor family) with the Intel X79 Express chipset. It includes all of the best ROG technologies such as four PCI-E 3.0 x16 slots, eight DIMM slots support 64 GB RAM Disk, premium sound from the SupremeFX Black, and RoG Sonic Radar. It also comes with the ASUS award-winning UEFI BIOS. And all this is just the basics.

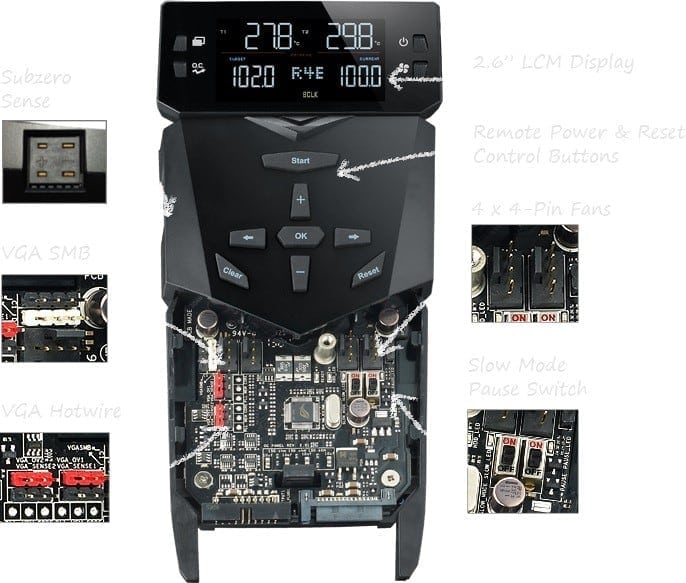

What separates the Rampage IV Black Edition from the rest is the Overclocking Panel. A dedicated piece of hardware you can use to directly access your motherboard’s sensors and overclocking features. There is no need to go through third-party software, or reboot every time you make a major change. The Overclocking Panel gives you up to the second system information and the power to change the Rampage IV’s performance in an instant, making the overclocking process much more accessible.
ASUS didn’t forget about gamers either. In addition to the high quality audio solution, RAM Disk to load your games 10 times faster than an SSD, and Extreme Engine III Digi+ VRM, ASUS also brings GameFirst II. This software will regulate network traffic and ensure your games get priority over everything else. Now there is no need to turn off an update, stop a download, etc. You can just play your favorite game like Assassin’s Creed IV Black Flag, for example, which comes free with the Rampage IV Black Edition.
[hide-this-part morelink=”Full Press Release”]
ASUS Announces Republic of Gamers Rampage IV Black Edition Motherboard
November 7th, 2013 – ASUS today announced the Republic of Gamers (ROG) Rampage IV Black Edition, an E-ATX gaming and overclocking motherboard designed to unleash the full potential of Intel® LGA 2011 Core™ i7 Ivy Bridge-E processors is available for pre-order at select sites.
Based on the Intel X79 Express chipset, the Rampage IV Black Edition includes all of the best ROG technologies and innovations for unrivaled gaming and overclocking performance. With its four PCI-E 3.0 x16 slots, two PCI-E 2.0 x1 slots and eight DIMM slots supporting up to 64GB of overclocked DDR3 DRAM, the Rampage IV Black Edition has near limitless expansion possibilities, including support for both 4-way NVIDIA® SLI™ and AMD CrossFireX™.
Born to push limits and break records
ASUS designed the Rampage IV Black Edition for those who demand the ultimate feature set. It includes the OC Panel, a real-time system-monitoring and tuning console that is great for gamers and a huge advantage for overclockers. It can be mounted internally for everyday monitoring of temperatures, base clock and fan speeds while also offering one-click CPU Level Up for an instant speed boost. Externally, it can be used to monitor and control multiple parameters in real-time via onboard buttons. Extreme overclocking has never been easier.
Prior to becoming widely available, world-class overclockers have already demonstrated the Rampage IV Black Edition’s record-breaking capabilities as it currently holds chart-topping scores in top benchmarks and numerous other world records on the X79 platform.
Built for the most demanding games and gamers
In order to be able to push the limits, ROG engineers combined thoughtful design with superior quality components.
The Rampage IV Black Edition’s Extreme Engine DIGI+ III voltage-regulator module (VRM) provides highly precise and stable power delivery by employing NexFET MOSFETs, 60A (amp) chokes and high-endurance Japanese-made 10K black metallic capacitors. The motherboard’s black-themed heat-sink is exclusively and cleverly integrated with the MOSFET area to extend to the input/output (I/O) cover for even better cooling and stability.
Built-in SupremeFX Black technology provides sound quality that is on par with high-end dedicated sound cards. Premium components such as ELNA® audio capacitors and German-made WIMA® film capacitors deliver impeccable clarity, while high-fidelity op-amps (operational amplifiers) and a Cirrus Logic® CS4398 DAC (digital/analog converter) deliver lossless audio and a brilliant 120dB SNR (signal-to-noise ratio).
ROG’s Sonic Radar on-screen overlay provides fans of first-person shooter (FPS) games with an ear to the ground, as it displays the precise direction and origin of in-game sounds such as gunshots, footsteps and call-outs — giving ROG gamers a leg-up when trying to pinpoint the enemy.
Ultra-fast Intel Gigabit Ethernet with ROG’s GameFirst II utility optimizes network traffic to keep latency to a minimum and reduce all-important ping times. The ROG RAMDisk utility allows up to 80% of a computer’s available RAM to be used as a high-speed virtual drive — lending a strong performance boost to many modern games that regularly read or write data during gameplay.
The Rampage IV Black Edition is currently available for pre-order at Newegg.com for US Customers and Canada Computers , Memory Express and NCIX for Canadian customers. General availability is scheduled the week of November 18, 2013.
