ASUS Sabertooth P67 (B3 Revision) LGA1155 Sandy Bridge ATX Motherboard Review

Posted by


Categories

Computer, Motherboard, Review
10 Flares 10 Flares ×

TUF Jacket: Bulletproof?

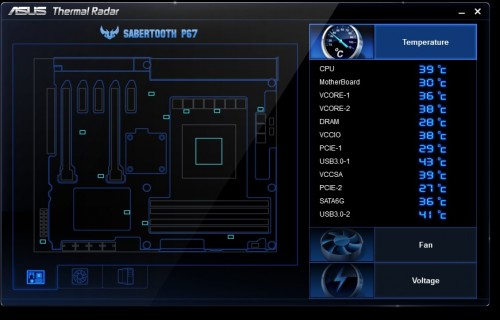

The Thermal Armor (TA) works hand in hand with ASUS AI Suite II which tracks twelve different sensors around the motherboard which includes the CPU itself. To test the TA’s effectiveness, the system was first left to idle for 60 minutes.

ASUS Sabertooth P67 Motherboard Review 15 500x320 ASUS Sabertooth P67 (B3 Revision) LGA1155 Sandy Bridge ATX Motherboard ReviewSystem Idle Average

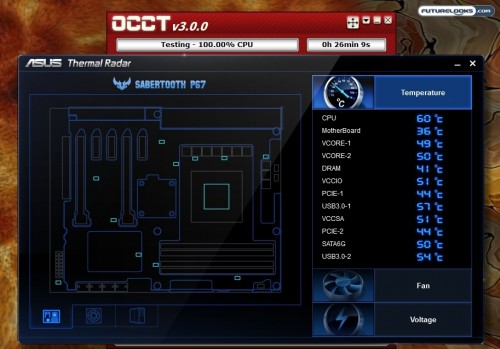

After our 60 minute idle period, the system was then loaded down for 60 minutes without any extra cooling fans. We used just the Zalman CNPS10X Extreme at its highest speed to represent a typical performance system setup.

ASUS Sabertooth P67 Motherboard Review 17 500x349 ASUS Sabertooth P67 (B3 Revision) LGA1155 Sandy Bridge ATX Motherboard ReviewWith Zalman CNPS10X Extreme

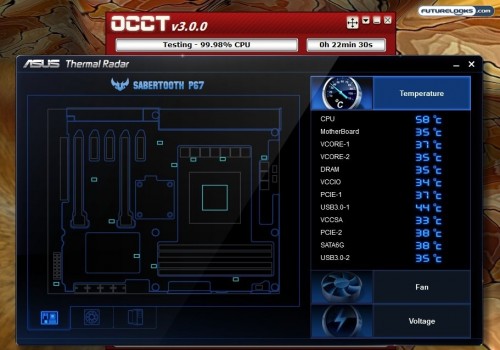

The process was repeated with a Noctua NH-C14 (horizontal) CPU cooler installed on the system because it sports two massive fans facing down which pushes air inside the TA.

ASUS Sabertooth P67 Motherboard Review 16 500x350 ASUS Sabertooth P67 (B3 Revision) LGA1155 Sandy Bridge ATX Motherboard ReviewWith Noctua NH-C14

It doesn’t take an engineer to have predicted these results. Obviously, the NH-C14 is the better configuration as it gets the air down inside which caused temperatures to drop across all the sensors. Even the Zalman cooler makes some difference with its wide dispersion around the socket. Some well placed case fans will also benefit the TA’s channeling. Keep in mind that direct air flow is not required at all for the Sabertooth to operate. But, of course, any extra air movement is a bonus, particularly if it is aimed through the Thermal Armor.

Final Thoughts

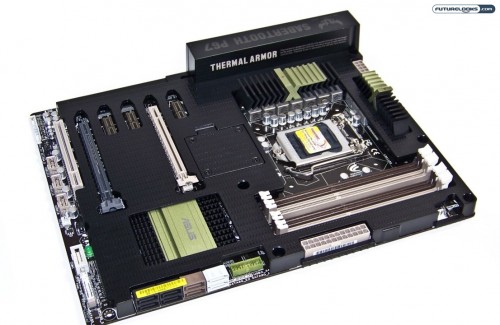

ASUS Sabertooth P67 Motherboard Review 31 500x325 ASUS Sabertooth P67 (B3 Revision) LGA1155 Sandy Bridge ATX Motherboard Review

This isn’t the first time we’ve seen a motherboard telling us that it is built with military grade components. What it actually means though is that it uses highly resilient components that are resistant to heat, abuse, substandard power, and extended periods of extreme use. That is what it truly means for something to carry the “military grade” standard. Much of those electronic components are indeed covered by a protective plate as you don’t want them exposed to foreign materials while you defeat the opposing forces in your favorite game. Plus, ASUS is the only company to actually get the blessing of the US military.

With that said, the ASUS Sabertooth P67 is designed and built with many of those key components and features in mind. This is one of the few platforms that I have come across that offers tangible features that reflect innovation and creativity. My only personal gripe is that there could be a bit more military in the color scheme. That would truly seal the deal soldiers.

Overall, the ASUS Sabertooth P67 motherboard is an inspiring product. Its performance and overclocking potential is extremely impressive further solidifying the reasons why the Editor’s Choice Award was given to the P8P67 EVO in which it shares much of the same technology with. But of course, since value is part of the equation when it comes to our highest accolades, the Sabertooth does stand out as a premium priced product.

Based on its $219 US price tag, it does provide a great platform for creative modders and a great performance platform for enthusiasts alike. The Sabertooth achieves it’s mission objective to offer you a never failing motherboard with an industry leading 5 year warranty and is still the only “Military Grade” board with a seal of approval from the US Military. Whether that’s worth the price is up to you, but we do feel compelled to recommend it if your pay grade allows for it.

Pros

  • True Military Rated Components
  • MemOK! and three separate SATA controllers
  • DIGI+VRM: Highly tuned VRM and Turbo Performance
  • Thermal Armor: Unique opportunity for modders
  • Very attractive design and concept
  • Exemplary overclocking and stability
  • US Military Approved With Certificate

Cons

  • Armor hides the board’s CMOS battery

Overall Rating: 9.0 / 10.0

recommendedweb ASUS Sabertooth P67 (B3 Revision) LGA1155 Sandy Bridge ATX Motherboard Review

Help Us Improve Our Reviews by Leaving a Comment Below!

Pages: 1 2 3 4
