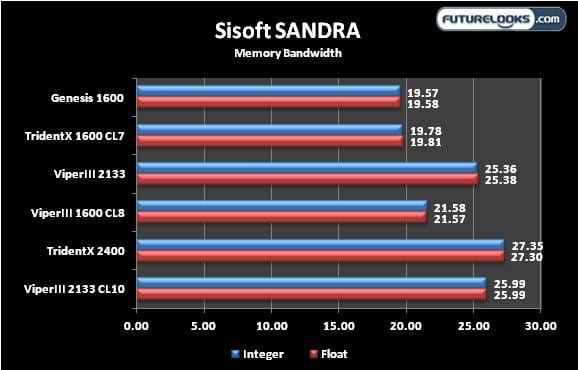

SISOFT SANDRA Memory Benchmark – System Response

Lower memory timings increase memory bandwidth which increases system responsiveness. For example, games that need more than 1.5GB of memory benefit execution more than anything else. Keep in mind that the processor’s IMC is the primary constant that effects memory performane. Here are the memory test results.

The Viper III 2133 produces about 2MB/s less bandwidth than the TridentX 2400. While one could drop the Viper III timings to CL10, it only offers a little extra memory bandwidth. The unexpected surprise is that the Viper III provides about 2MB/s more bandwidth at 1600 CL8 than the TridentX using CL7 timings. After repeated testing, it’s evident that the Ivy Bridge IMC really favors the Hynix based Viper III.

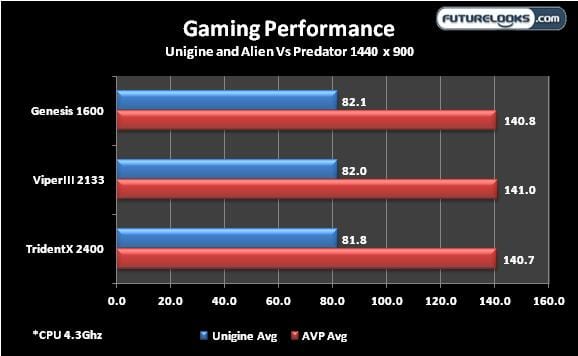

Graphical Influence – Unigine Heaven 2.5 and Aliens vs Predator

When it comes to gaming, it’s all about the GPU, and in some circumstances, CPU performance. Budget 1600MHz kits are more than enough but don’t always look as good as the high performance flag ship kits.

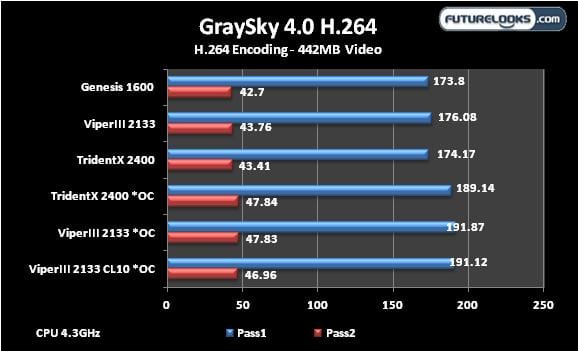

Graysky 4.0 Benchmark – H.264 Transcoding

After repeated trials, these were the average encoded frames per second using the GraySky 4.0 benchmark. The reason for the scores being so similar between 2133 and 2400MHz is that the Ivy Bridge CPU isn’t capable of utilizing all that memory bandwidth. Even with an overclocked CPU, it’s the same story.

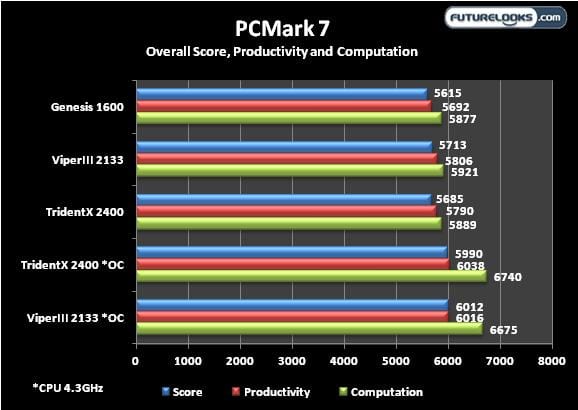

PCMark7 – Overall System Benefit

Often, memory can effect overall system performance. PCMark7 is good at revealing any performance advantages.

At this point, the test system is running so optimally that there’s only slight changes in performance. Interestingly, the results are very close again as there is more than enough memory bandwidth feeding the CPU. When overclocked, the TridentX 2400MHz shows the advantage of extra bandwidth.

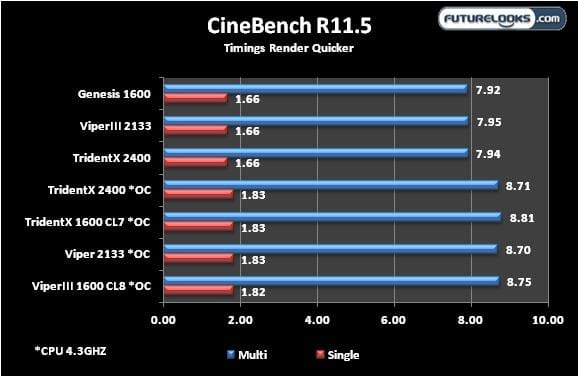

CineBench R11.5 – Rendering

Even with and without the extra memory frequency, the system performance is very close. These slight variations point to the finest tuning between the BIOS and memory. When over clocked, the CPU is still unable to utilize all that bandwidth. Still, this gives you an idea as to what memory frequencies realistically support the system for the best cost.

Final Thoughts

Until the Viper III arrived, the TridentX 2400MHz didn’t have a challenger. But it’s clear that the Viper III’s additional tuning and careful selection of Hynix memory chip would better support Ivy Bridge’s 1600MHz IMC. Whether at CL8 or CL9 timings, it’s currently faster than the many kits that we currently have in the labs.

The Patriot Memory Viper III 2133MHz 8GB memory kit is perfect at stock speeds and surprisingly fast when down clocked to 1600MHz and with latencies tightened. This will satisfy users who demand maximum system responsiveness. The ability to work with tighter timings is one of the greatest benefits hidden within high performance overclocking memory. Any Ivy Bridge processor will get maximum bandwidth at all times as a result of this combination of tuning. Although the high CL11 timings at higher speeds may deter some looking for even higher speeds when pushed.

So in the end, the Patriot Memory Viper III 2133MHz DDR3 dual channel kit offers the ability to clock to new heights, but can also run at tighter timings to give your Ivy Bridge system more responsiveness. Patriot has taken the time to select the right parts for Intel’s new processor and that shows in the results. It’s clear that these aren’t just rebadged/remarketed modules. They are the real deal and at about $59.99 US/CA , they also won’t overtax your wallet.  They receive a very strong recommendation from us.

Pros

  • Attractive light weight heat spreaders
  • Clean black PCB Viper III theme
  • Good 2133MHz performance
  • Very good hidden 1600MHz performance
  • XMP profiles worked well

Cons

  • CL11 timings may deter some users

Overall Rating: 9.0 / 10.0
