The Heart of the Silentnight

Rosewill Silentnight 500 Watt Power Supply Review

The internal power plant is similar to any other at first glance. Granted, it utilizes two thin and two huge tall black heat sinks that make a connection with the PSU chassis heat sink which we don’t see every day. The plant is fed by a 400 volt 470uF Nippon Chemi-Con capacitor. Everything else from the rectifiers to the controllers is more than capable of handling the job. I suspect the unit could have been built in Super Flower’s plant because it’s so similar to a Kingwin STR-500, which is another passive unit on the market. The big difference is that Kingwin has a 5 year warranty whereas the Rosewill offers a 7 year warranty to one up it.

With all the external looks and specs out of the way, let’s test this bad boy out!

Testing System Setup and Methodology

Rosewill Silentnight 500 Watt Power Supply Review

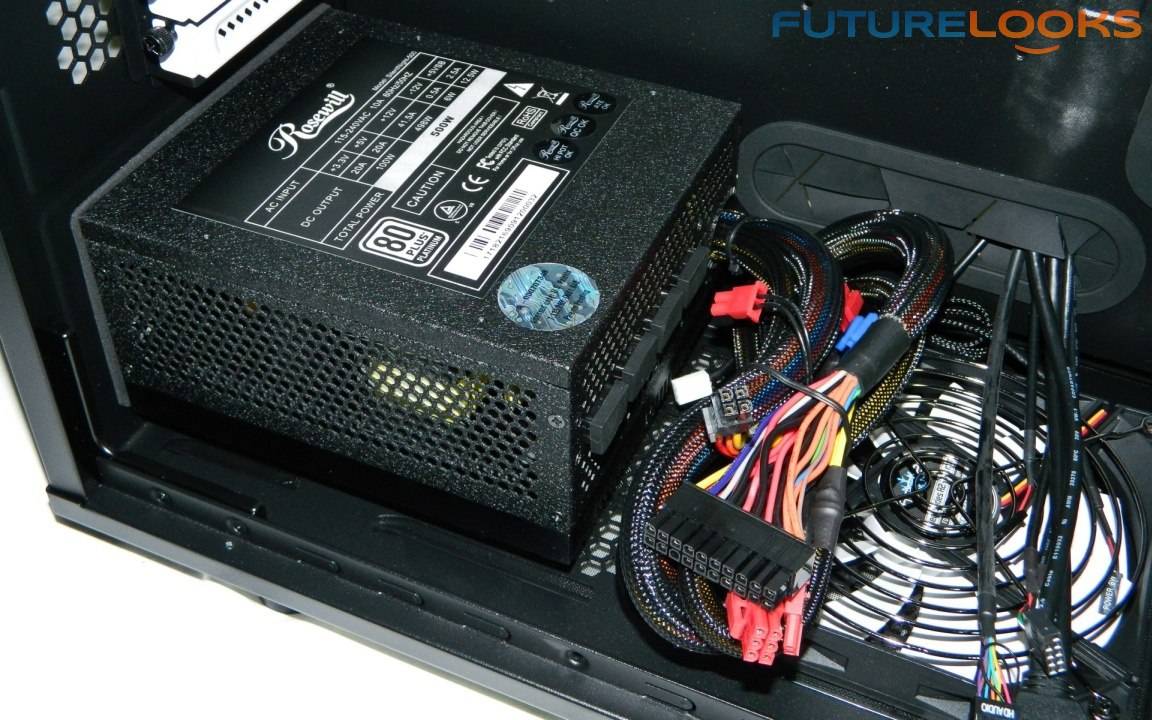

A simple test system was used to make sure the PSU offers the ability to at least power it and give it what it needs. Our test system featured a Intel Core i7-3770K CPU on an ASUS Sabertooth Z77. We plugged in some Corsair Dominator Platinum 16GB DDR3 memory and a Kingston HyperX 3K 240GB SSD. To take care of the graphics duties, we employed the  NVIDIA GTX 760 video card which has an estimated consumption of around 350 watts max.

While measuring the voltage through the motherboard software tends to be just a little different than the trusty o-scope tests, the ASUS AI Suite onboard the ASUS Sabertooth Z77 does report the specifics that are important to the system’s performance to start. However, the final results include the o-scope tests to verify.

The voltage rails aren’t so much always the target in question as much as the ripple and any large power jumps so we will be looking for those. And with that in mind and a couple hours of monitoring, here’s how the Silentnight performs.

Silentnight Performance

Rosewill Silentnight 500 Watt Power Supply Review

Voltage output isn’t a problem at all for the Rosewill Silentnight 5oo Watt power supply. It’s solid from idle to 100% load. Ripple is quite low as well as any fluctuations during operation. Efficiency remains 91 to 92% which is excellent and right inline with its 80PLUS Platinum rating.

Temperatures ranged from 50 to 54C which is to be expected and tells us that the passive cooling mechanism is definitely doing what it does and does it well. Maximum output topped out at about 575 Watts maintaining an 89-90% efficiency which is really great news for users worried about whether ample power can be supplied under more punishing loads. And, of course, there is absolutely no noise to measure.

When you consider the engineering obstacles (and the price point along with the 7 year parts and labor warranty) this is an excellent silent unit.

Final Thoughts

Rosewill Silentnight 500 Watt Power Supply Review

What applications fit the Rosewill Silentnight 500 Watt Platinum power supply best? Users could use it for any computer based on our testing. But the PSU would really support home theater and audio-visual computer systems since these users desire the silence and the performance too. That said, the Silentnight will also pair nicely with the right CPU cooler and video card for a quieter gaming system. In fact, despite NVIDIA’s 600 Watt recommendation, we also tested the power supply with a GIGABYTE GTX 770 OC 2GB, which ran smoothly on our test system without issue, without adding to the noise levels.

Overall, the Silentnight 500 delivers exactly what it promises: silence, 80Plus Platinum efficiency, 500 watts (and then some), and stable voltage output. There are a few other other passively cooled units to choose from but I’ve only seen one other which I suspect was made in the same plant, but with a slightly lesser warranty. The choice may be clear especially if you factor in the price and Rosewill’s determination to become a true player in the PC DIY market.

If you’re looking for a superb fanless 500 Watt power supply sporting a 7 year warranty, with a company that is proving every day that they want to play ball, then the Rosewill SilentNight 500 80Plus Platinum is my Editor’s Choice. And with pricing as low as $139.99 US with an “Iron Egg Guarantee”, there’s no reason it shouldn’t be yours too.

Pros

  • True 80Plus Platinum efficiency
  • Fanless, noiseless, silent!
  • Reliable, strong power output
  • Heart of a 600 Watt 80Plus Gold
  • High quality components and design
  • 7 Year warranty

Cons

  • None really, just needs Velcro straps

Overall Rating: 9.5/10

Rosewill Silentnight 500 Watt Power Supply Review
