Benchmark Notes

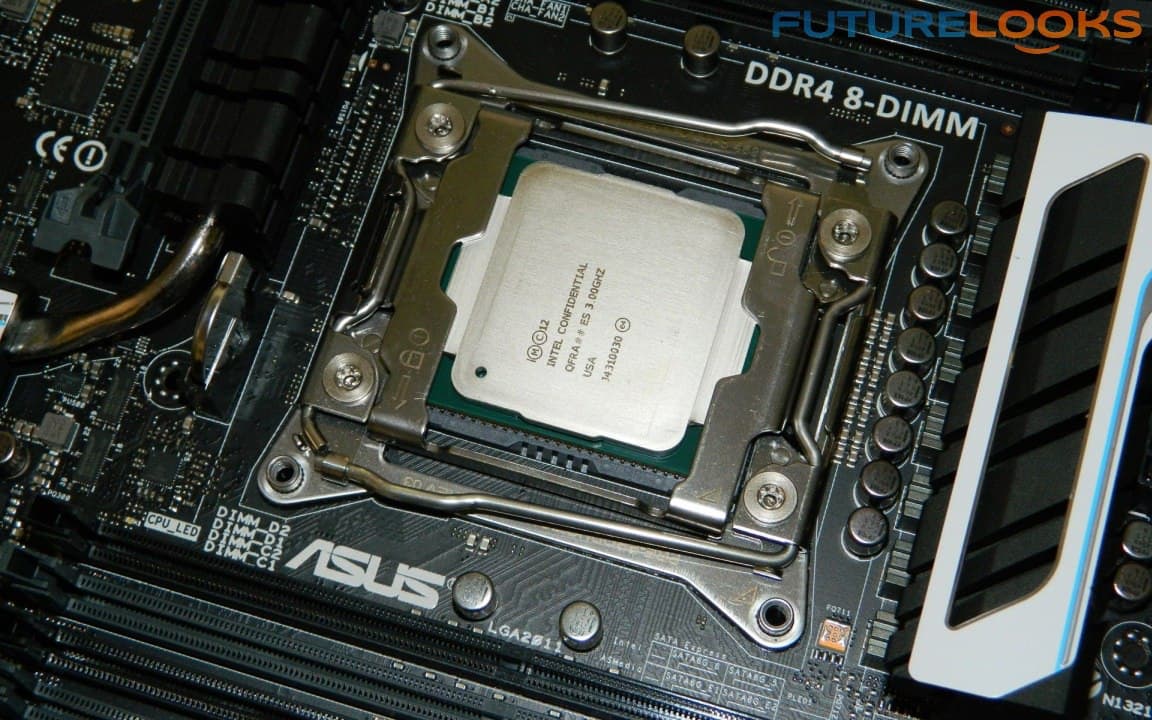

 Intel Core i7-5960X Haswell-E Processor 16

Naturally, benchmarks were selected to primarily focus on the processor. This includes benchmarks that simulate projects like rendering, calculations, encryption, transcoding, and a couple games that benefit from multi-core processors. However, those kinds of games typically only show a minor improvement, but we’ll see if there’s anything tangible.

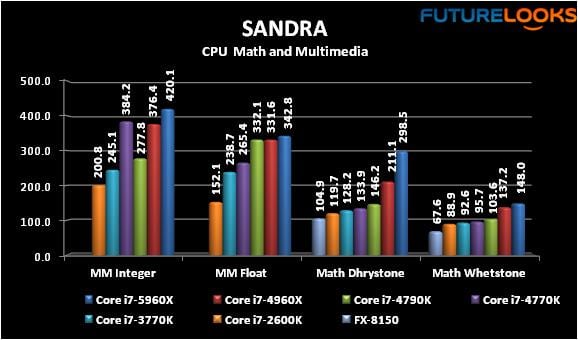

SANDRA – Math and Multimedia

 Intel Core i7-5960X Haswell-E Processor 20

Starting off with SANDRA CPU tests, the Core i7-5960X is the most powerful CPU to date, despite the lower frequency 3.0GHz cores. The threads make up the difference immensely.

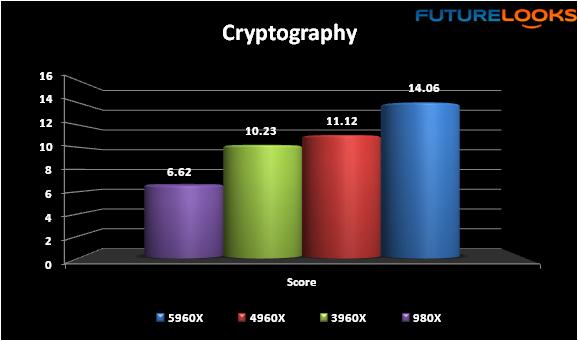

SANDRA – Cryptography (AES256 + SHA2-256)

Intel Core i7-5960X Haswell-E Processor 29

Only the hex and octo-core processors are shown above. While frequencies and core counts seem to be the MVPs of the benchmark, it’s also the latest instruction sets that give the Core i7-5960X a very strong cryptography score.

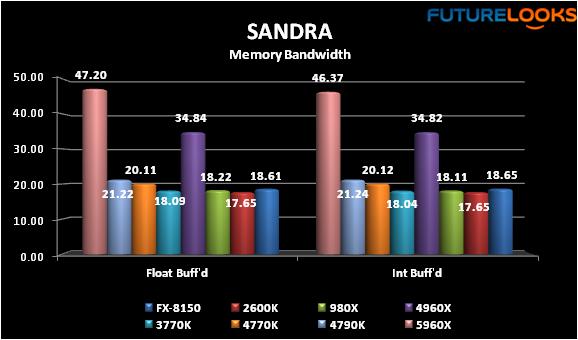

SANDRA – Memory Bandwidth (CPU Memory Controller Test)

Intel Core i7-5960X Haswell-E Processor 21

After running the benchmark several times, it’s evident that 8 cores are well fed by the integrated memory controller. A slight frequency increase to the Corsair Vengeance LPX memory to 2400 MHz actually increased bandwidth to 52.5 GB/s. More on that later when we put some higher end modules to the test.

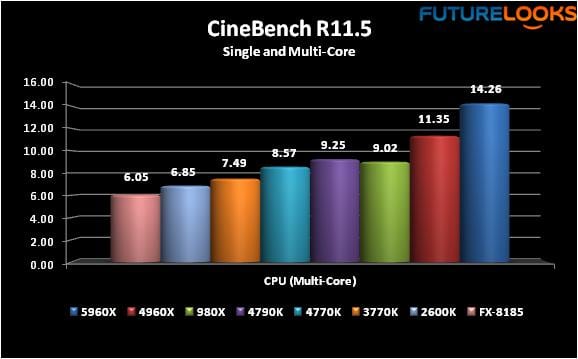

CineBench R11.5 and R15

Intel Core i7-5960X Haswell-E Processor 26

Including R11.5 one last time, we wanted to show you where the Core i7-5960X lands in terms of CPU rendering performance. It certainly is the king of this benchmark by a large margin.

Intel Core i7-5960X Haswell-E Processor 23

In the R15 benchmark, we see similar performance as the Core i7-5960X makes light work of the rendering program, pulling away from the rest of the pack. Rendering programs that take advantage of as many threads as it can get, will always benefit from more cores and threads.
