Intel’s NEW X79 LGA2011 Socket Platform and Core i7-3960X Extreme Edition Sandy Bridge-E Processor Reviewed

Posted by


Check out our extensive COMPUTEX Taipei 2014 Coverage! With high quality videos, news, and more that you deserve! - Give Me All The Coverages!
29 Flares 29 Flares ×

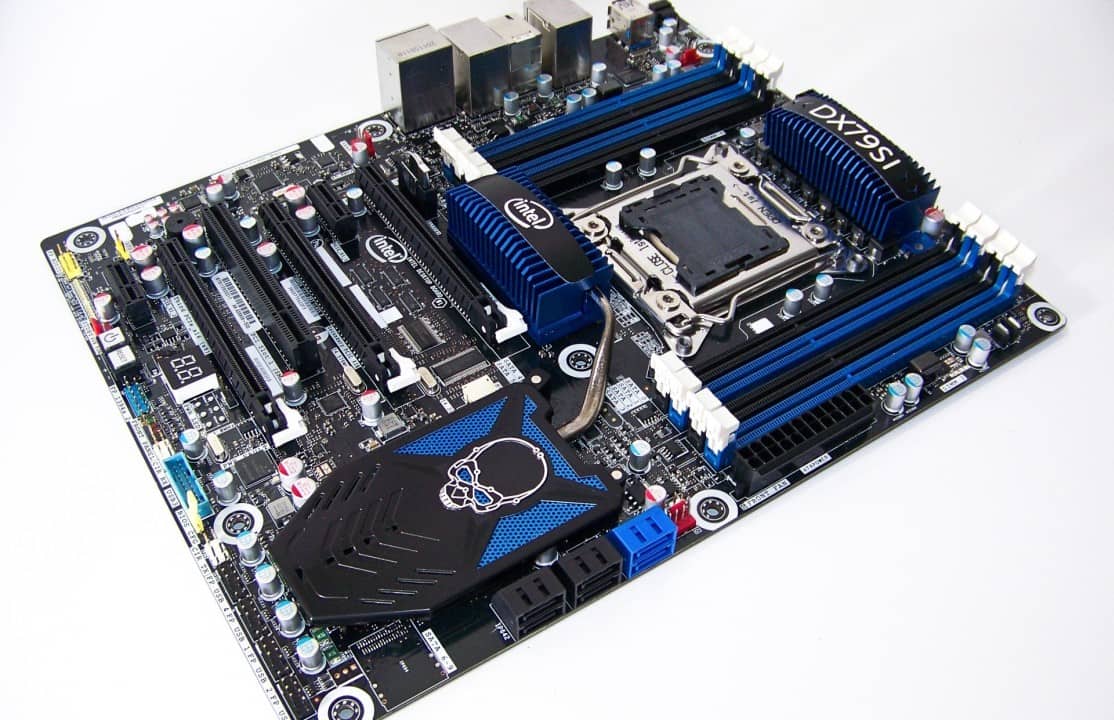

Intel DX79SI Extreme: Performance Motherboard

Intel Core i7 3960X Sandy Bridge E Processor and X79 Motherboard Preview 2 500x323 Intels NEW X79 LGA2011 Socket Platform and Core i7 3960X Extreme Edition Sandy Bridge E Processor Reviewed

The DX79SI is Intel’s flag ship performance motherboard. It offers the maximum number of native DIMM slots supporting up to 64GB total 1600MHz DDR3. However, the board will accommodate 2400MHz memory overclocking which wasn’t possible on previous generation boards. Naturally, you won’t reach those frequencies with all 8 DIMM slots populated but you can get there with four memory modules. This will be the case with all partner X79 motherboards as well.

The board supports up to three video cards in its PCIE 3.0 slots for 3-way NVIDIA SLI and AMD CrossfireX four way action. Naturally, it takes a PCIE 3.0 compatible processors to benefit from the extra bandwidth. IO and expansion follow previous designs offering two native SATA3 and four SATA2 ports, Rapid Storage and Rapid Recovery (RAID) technology, 10-channel HD audio, Power/Reset buttons, dual Intel LAN Pro Ethernet and Back to BIOS switch.

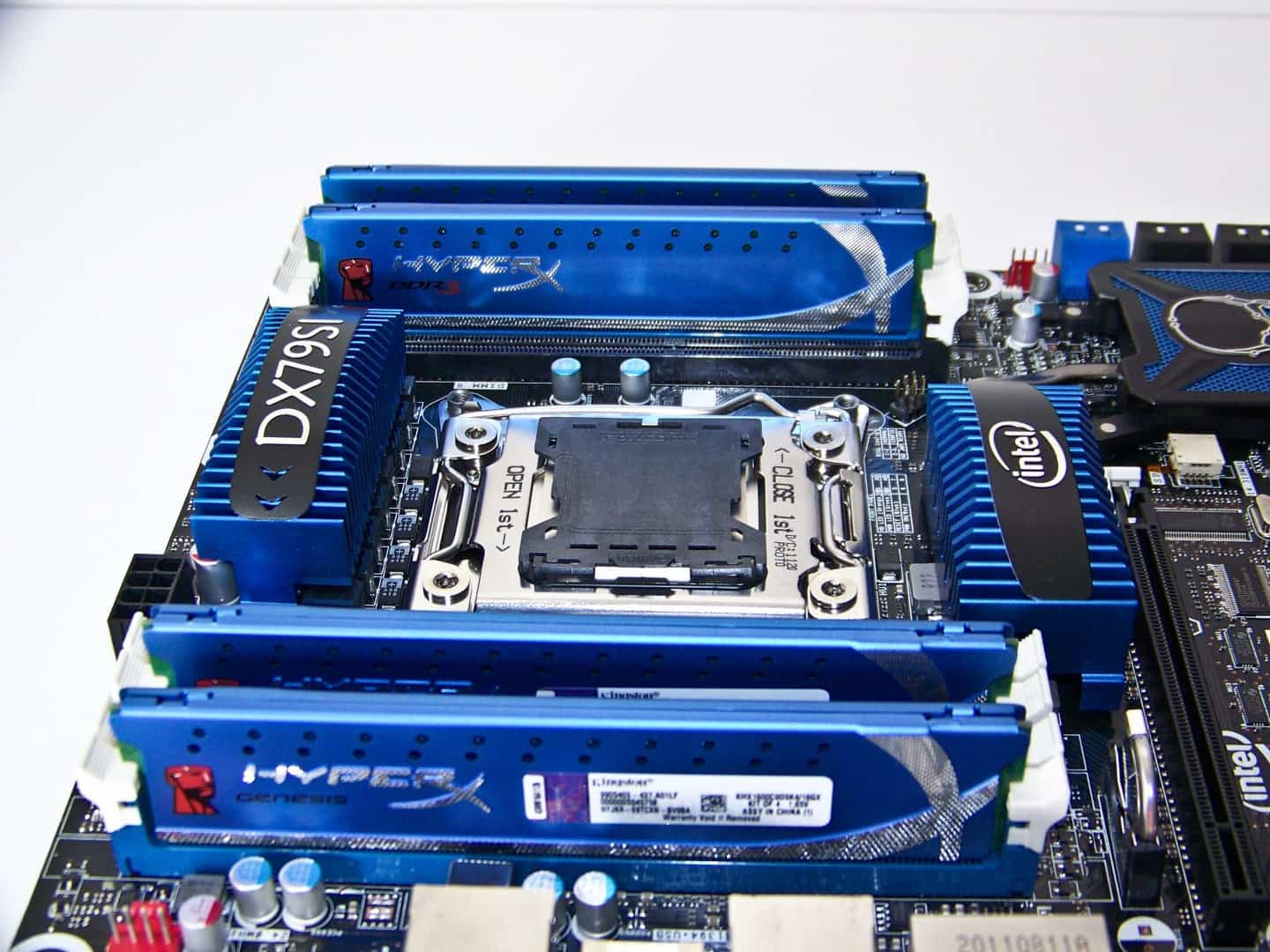

Intel Core i7 3960X Sandy Bridge E Processor and X79 Motherboard Preview 9 500x375 Intels NEW X79 LGA2011 Socket Platform and Core i7 3960X Extreme Edition Sandy Bridge E Processor Reviewed

Software wise, Intel tuned up the Extreme Tuning Utility used for monitoring temps and controlling fans. Users can manually tune the memory and processor. And, of course if you don’t have the overclocking bug, there’s the option to let the system auto tune itself. Remember, this is not a reference board. You’ll be able to find this nearly flawless board from the usual retailers for about $360 US/CA as well.

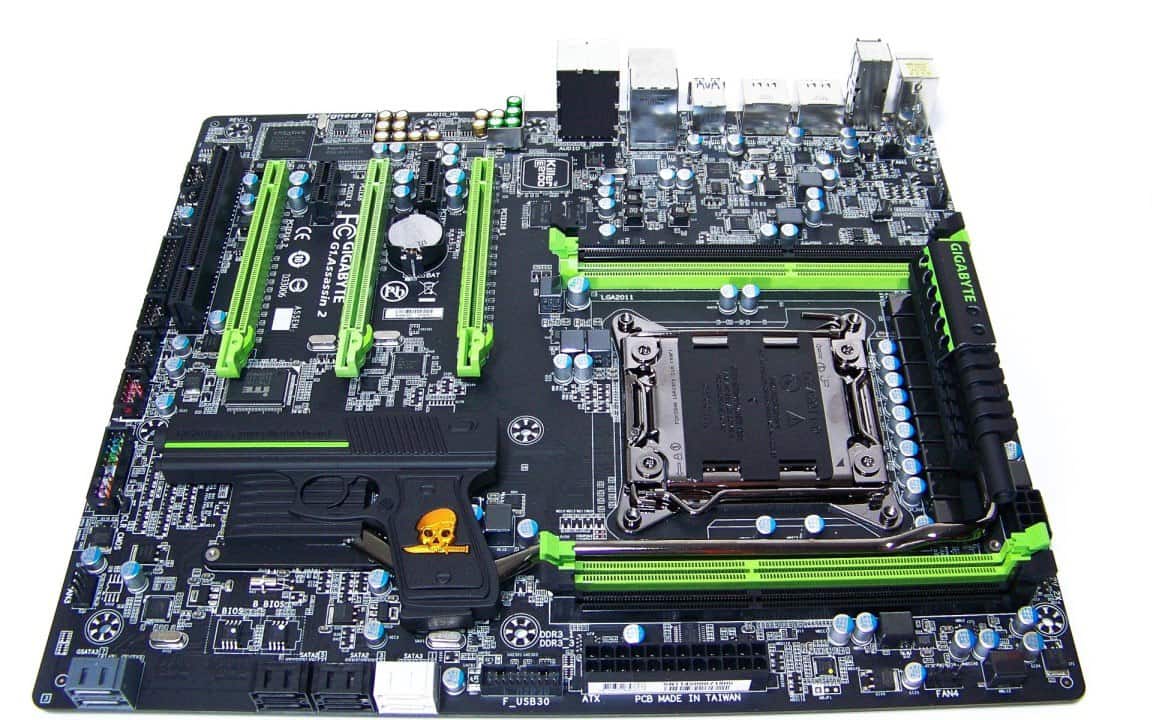

GIGABYTE G1 Killer Assassin 2:  Premium Gaming Motherboard

GIGABYTE G1 Killer Assassin 2 Sandy Bridge E Motherboard 3 500x312 Intels NEW X79 LGA2011 Socket Platform and Core i7 3960X Extreme Edition Sandy Bridge E Processor Reviewed

The G1 Killer series is the only unmistakably gamer-only line of motherboards. The Assassin 2 is their flagship premium gaming motherboard aimed at balancing high end gaming components  with some high performance tuning. You’ll notice this time around, the X79 Assassin 2 isn’t as flashy due to the increasingly small profile components plus the lack of any special “Killer” LED heat sink lights.

The platform offers 4-DIMM slots for a maximum 32GB memory payload. It’s an interesting choice to cut back on in a premium platform. However, gamers do love a good deal and this helps cut board manufacturing and memory costs. IO and expansion wise, 3-way NVIDIA SLI and AMD CrossfireX keep “Super Sight” graphics options open. Plus, “Super Hearing” Creative X-Fi audio, “Super Speed” Killer E2100 network procesing and Bluetooth 4.0+WiFi Card round off the board’s premium features.

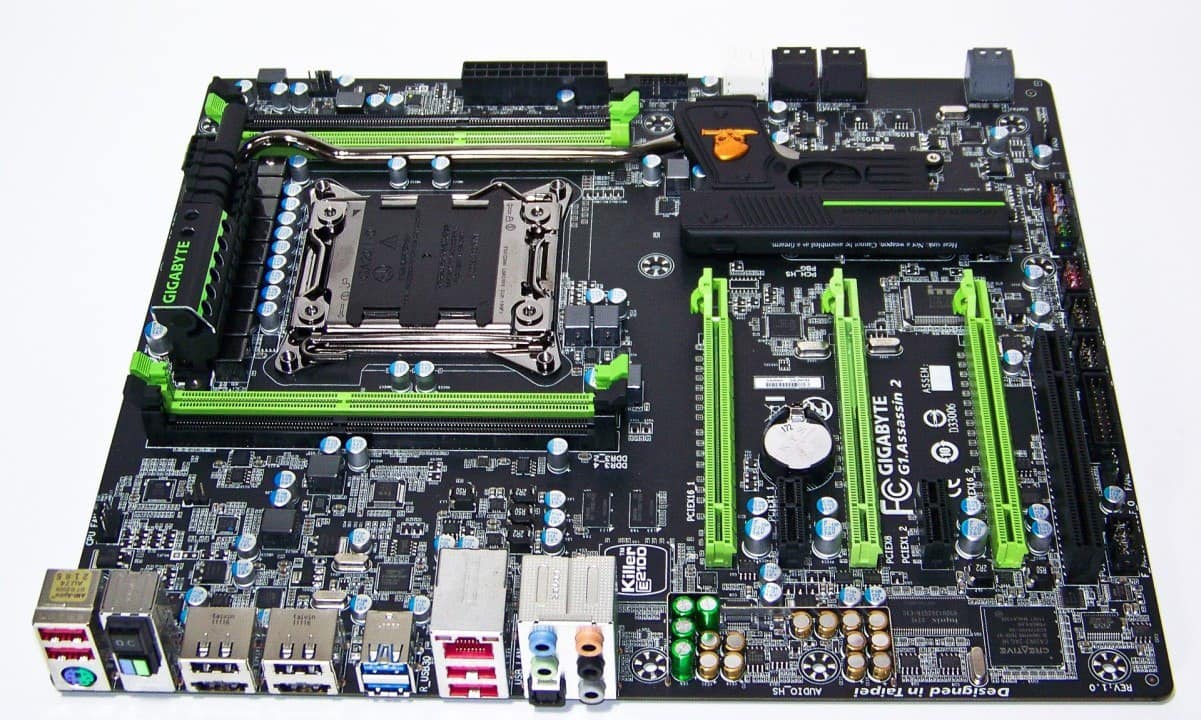

GIGABYTE G1 Killer Assassin 2 Sandy Bridge E Motherboard 4 500x299 Intels NEW X79 LGA2011 Socket Platform and Core i7 3960X Extreme Edition Sandy Bridge E Processor Reviewed

GIGABYTE’s new 3D Power Utility offers near complete voltage, phase and frequency control over the CPU. And, we finally get dual UEFI 3D BIOS in the X79 platform. Preliminary handling showed us an attractive BIOS with a logically intuitive interface. Pricing of the GIGABYTE G1 Killer Assassin 2 is estimated at $430 but could end up being less from retailers.

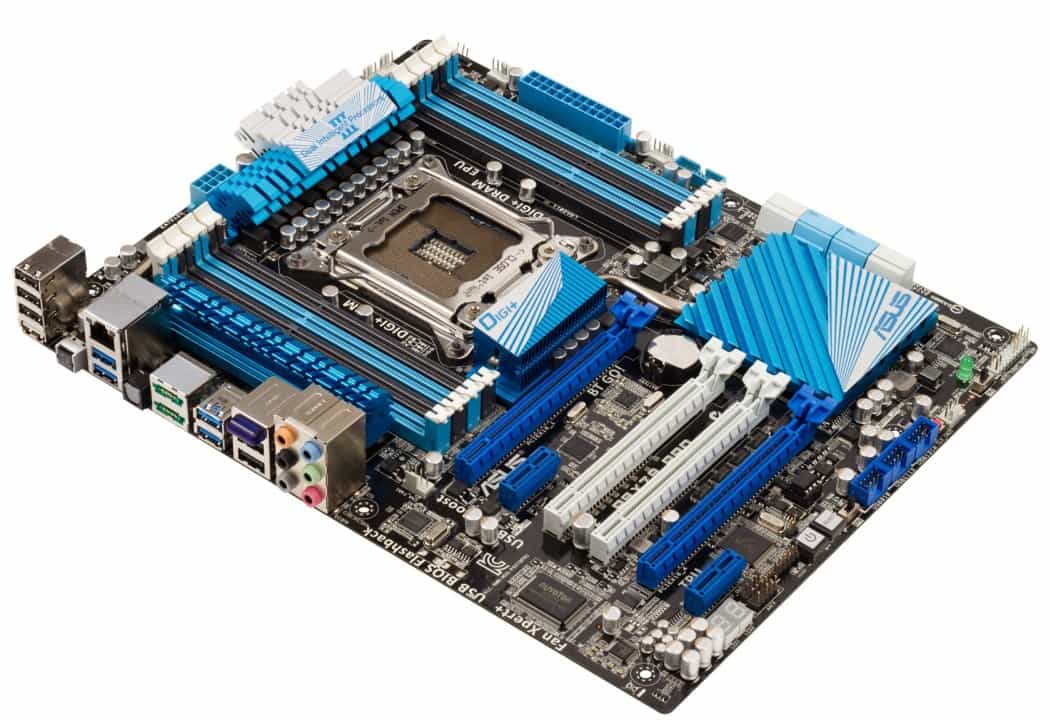

ASUS P9X79 Pro – Mainstream Level

ASUS P9X79 Pro Motherboard 500x342 Intels NEW X79 LGA2011 Socket Platform and Core i7 3960X Extreme Edition Sandy Bridge E Processor Reviewed

There are plenty of users who require a bit more connectivity without cleaning out your wallet. After browsing the many X79 offerings, the ASUS P9X79 Pro looks to be the right platform for the job. Some of the features include four PCIE 3.0 slots for 3-Way NVIDIA SLI and AMD CrossfireX expansion, the latest rear IO expansion, integrated BlueTooth connectivity and plenty of SATA2/3 ports.

One of the features ASUS is well known for designing is their Dual Intelligent Processor III digital PWM. This technology has consistently provided the cleanest, most responsive power that gives Intel processors just a little extra edge. This design shines even further if you happen to take advantage of their BIOS overclock presets. If you want that extra power, you won’t be disappointed. Power users will also find setting up their 64GB max memory very easy thanks to the MEMOK feature. That’s more than enough to handle those massive Photoshop or media projects.

How much will the ASUS P9X79 Pro cost? We didn’t get confirmed prices, but it stands to reason the board will price in around the $330 US/CA level. Given the history of the “Pro” boards, expect these to be the board of choice for many enthusiasts.

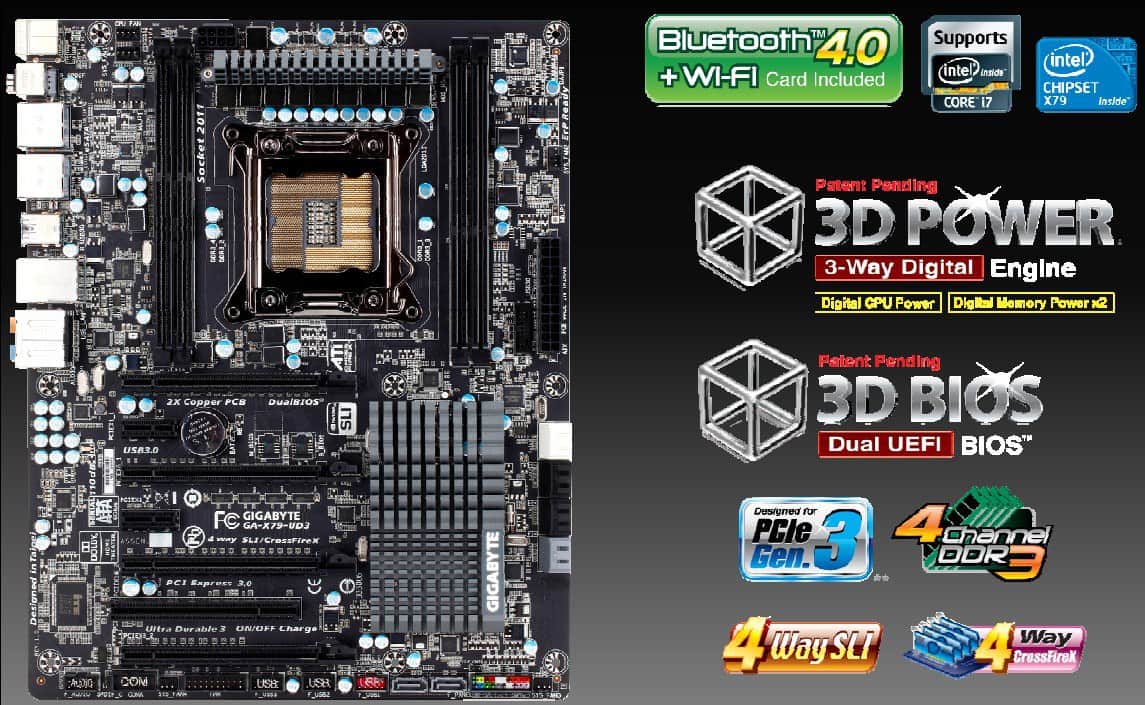

GIGABYTE GA-X79A-UD3 Motherboard – Excellent Value Level

GIGABYTE GA X79A UD3 Motherboard 500x307 Intels NEW X79 LGA2011 Socket Platform and Core i7 3960X Extreme Edition Sandy Bridge E Processor Reviewed

Not all content creators need much more than the basic features to be productive. This is one place the GIGABYTE GA-X79A-UD3 may or may not fit. While it has all the trimmings of the previous X58 generation, this PCIE 3.0 ready platform also supports 4-way NVIDIA SLI and AMD CrossfireX. That’s a lot of Folding@Home and Photoshop processing power typically flaunted by higher end boards. That could make this platform a very hard standard to top.

Many features are the same as the Assassin 2 including the use of 4-DIMM slots, 3D Power, dual UEFI 3D BIOS and Bluetooth 4.0+WiFi card. Judging by the VRM components north of the CPU socket, there appears to be the same amount of overclocking potential. Again, that International Rectifier digital PWM is built in to all their platforms.

Prices of this platform will be in the neighborhood of $280 US/CA from the usual retailers. This could be a very popular bang-for-buck platform among Sandy Bridge-E users.

Pages: 1 2 3 4 5
